W12 SERIES

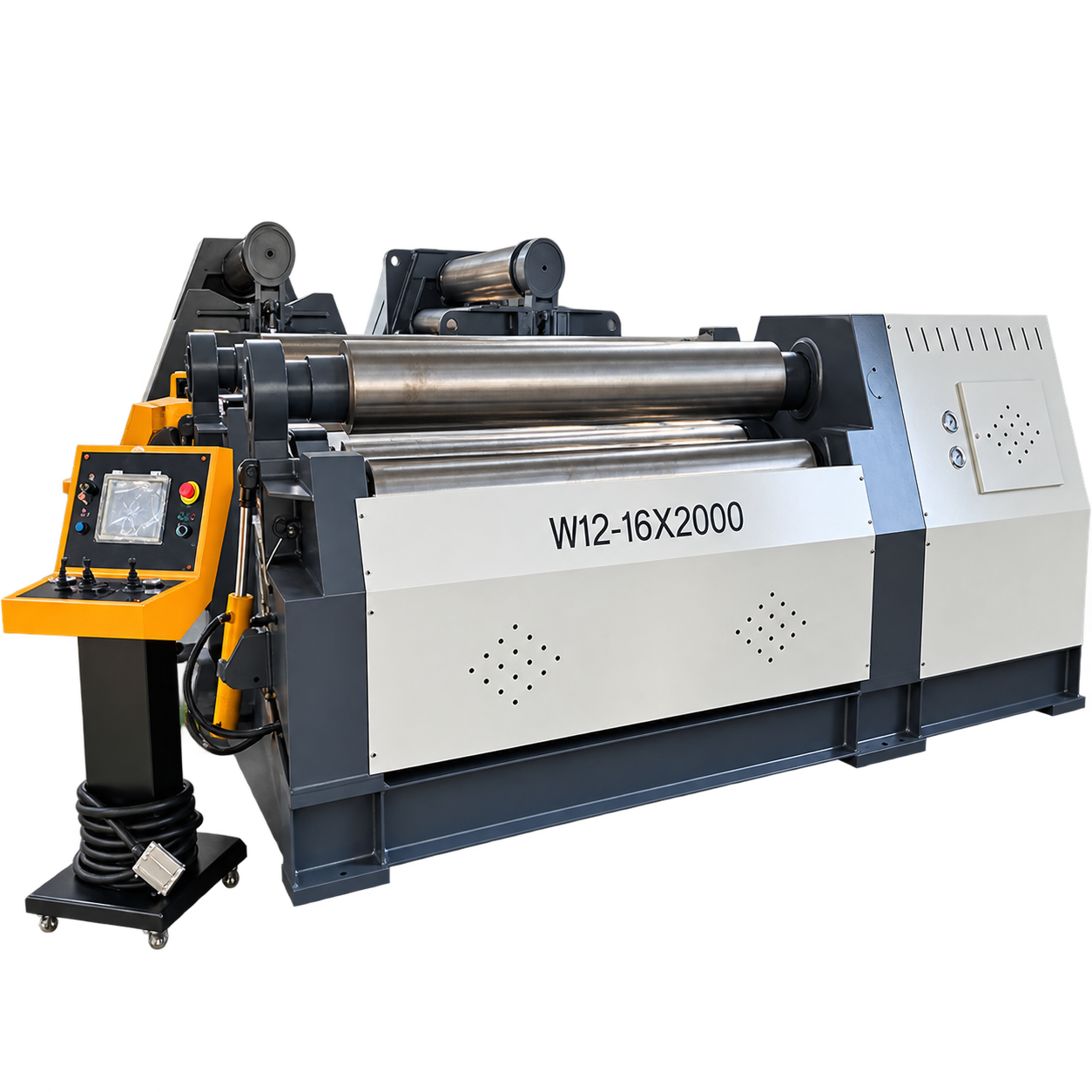

4-Roll Plate Rolling Machine
The four-roll plate rolling machine uses an upper roll, lower roll and two side rolls to control the plate during forming. The plate is clamped between the upper and lower rolls while the side rolls are used for pre-bending and rolling. This structure provides controlled plate handling throughout the forming process and is suitable for cylindrical, curved and selected conical workpieces. Wesend configures each machine according to material, plate thickness, working width, minimum rolling diameter, workpiece shape and production requirements.
APPLICATIONS
Industries & Applications
Four-roll plate rolling machines are used where controlled plate forming, pre-bending and repeatable rolling are required.
Rolling shells and cylindrical components for tanks and vessel fabrication.
Forming curved and cylindrical plate components for marine fabrication.
Rolling curved plate components used in structural fabrication projects.
Flexible forming for cylindrical, curved and application-specific workpieces.
Plate forming for fabricated components used in heavy equipment production.
Production-oriented plate rolling for a wide range of industrial components.
MACHINE SELECTION
Send Us Your Workpiece Requirements
To recommend the appropriate W12 configuration, provide the main forming information below. A workpiece drawing is especially helpful for special shapes or production requirements.
SEND REQUIREMENTSFAQ
Common Questions
What information is required for machine selection?
Please provide material, maximum plate thickness, plate width, minimum rolling diameter and, if available, the finished workpiece drawing.
Can a four-roll machine perform pre-bending?
Yes. The four-roll structure supports plate clamping, plate-end pre-bending and rolling within the forming process.
Can the machine roll conical workpieces?
Cone rolling solutions can be configured for suitable workpieces. Please provide the cone dimensions and material information for selection.
Can you provide CNC control?
Yes. Different control configurations can be selected according to production and operating requirements.
Can the machine be customized?
Yes. Wesend can configure the machine according to material, plate dimensions, forming diameter, workpiece geometry and production requirements.
SEND YOUR REQUIREMENTS
Get a 4-Roll Plate Rolling Machine Recommendation
Send us your workpiece and material requirements. Our team will recommend a suitable W12 configuration for your application.
