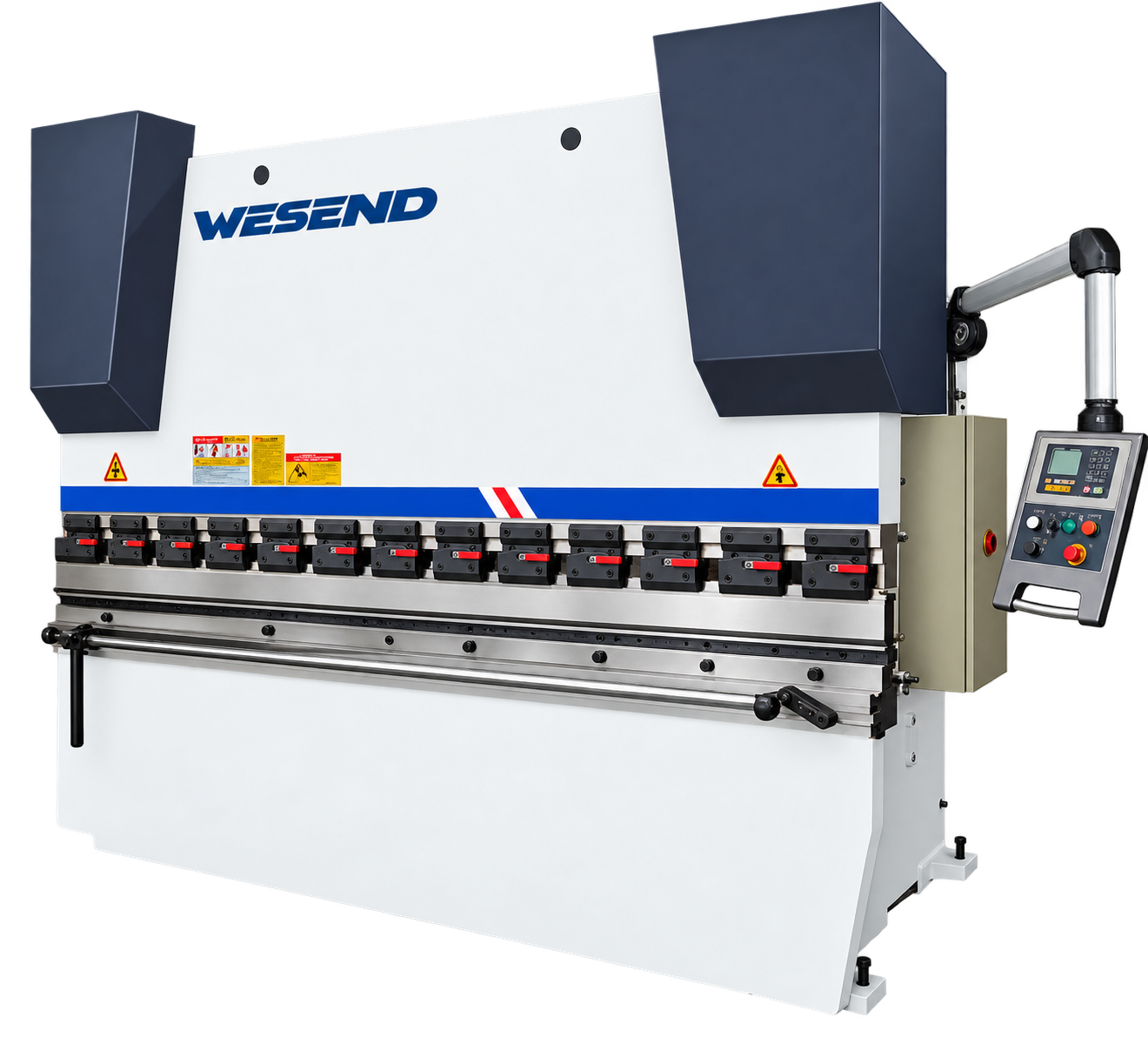

Economical Press Brake
Economical hydraulic press brake for standard bending and fabrication work, with torsion-bar synchronization.
Machine Overview
The WC67Y NC torsion-bar synchronized press brake provides hydraulic bending with a torsion-bar synchronization structure. The machine is intended for standard sheet-metal fabrication and straightforward bending tasks. Select the nominal force, bending length, tooling and backgauge configuration according to the material and finished part.
Machine Selection
Send your material, dimensions, finished-part requirements and drawing for model selection.
Technical Parameters
Selected catalogue models. Confirm the material, operating conditions and final machine specification before ordering.
| Catalogue model | Nominal force(kN) | Table length(mm) | Distance between uprights(mm) | Ram stroke(mm) | Throat depth(mm) | Opening height(mm) | Main motor power(kW) | Main pump displacement(ml/rev) |
|---|---|---|---|---|---|---|---|---|
| 63/3200 | 630 | 3200 | 2050 | 120 | 300 | 360 | 5.5 | 13 |
| 80/3200 | 800 | 3200 | 2600 | 120 | 320 | 380 | 7.5 | 16 |
| 125/2500 | 1250 | 2500 | 2050 | 140 | 350 | 400 | 7.5 | 16 |
| 125/3200 | 1250 | 3200 | 2600 | 140 | 350 | 400 | 7.5 | 16 |
| 125/4000 | 1250 | 4000 | 3200 | 140 | 450 | 400 | 7.5 | 16 |
| 160/2500 | 1600 | 2500 | 2050 | 200 | 400 | 470 | 11 | 25 |
| 160/3200 | 1600 | 3200 | 2600 | 200 | 400 | 470 | 11 | 25 |
| 160/4000 | 1600 | 4000 | 3200 | 200 | 450 | 470 | 11 | 25 |
| 200/2500 | 2000 | 2500 | 2050 | 200 | 450 | 470 | 15 | 32 |
| 200/3200 | 2000 | 3200 | 2600 | 200 | 450 | 470 | 15 | 32 |
| 200/4000 | 2000 | 4000 | 3200 | 200 | 450 | 470 | 15 | 32 |
| 200/6000 | 2000 | 6000 | 5000 | 200 | 450 | 470 | 15 | 32 |
| 250/3200 | 2500 | 3200 | 2600 | 250 | 500 | 520 | 18.5 | 40 |
| 250/4000 | 2500 | 4000 | 3200 | 250 | 500 | 520 | 18.5 | 40 |
| 250/6000 | 2500 | 6000 | 5000 | 250 | 500 | 520 | 18.5 | 40 |
| 300/3200 | 3000 | 3200 | 2600 | 250 | 500 | 520 | 22 | 50 |
| 300/4000 | 3000 | 4000 | 3200 | 250 | 500 | 520 | 22 | 50 |
| 300/6000 | 3000 | 6000 | 5000 | 250 | 500 | 520 | 22 | 50 |
| 400/3200 | 4000 | 3200 | 2600 | 300 | 550 | 580 | 30 | 63 |
| 400/4000 | 4000 | 4000 | 3200 | 300 | 550 | 580 | 30 | 63 |
| 400/6000 | 4000 | 6000 | 5000 | 300 | 550 | 580 | 30 | 63 |
| 500/4000 | 5000 | 4000 | 3200 | 300 | 550 | 580 | 30 | 63 |
| 500/6000 | 5000 | 6000 | 5000 | 320 | 550 | 600 | 37 | 80 |
| 600/6000 | 6000 | 6000 | 5000 | 320 | 600 | 600 | 37 | 80 |
Source: Press Brake Catalogue, printed pages 13–16. Specifications are subject to modification. Material strength, plate dimensions and forming conditions affect capacity.
This is the shared torsion-bar press-brake family specification table. The selected NC controller and machine configuration must be confirmed before ordering.
