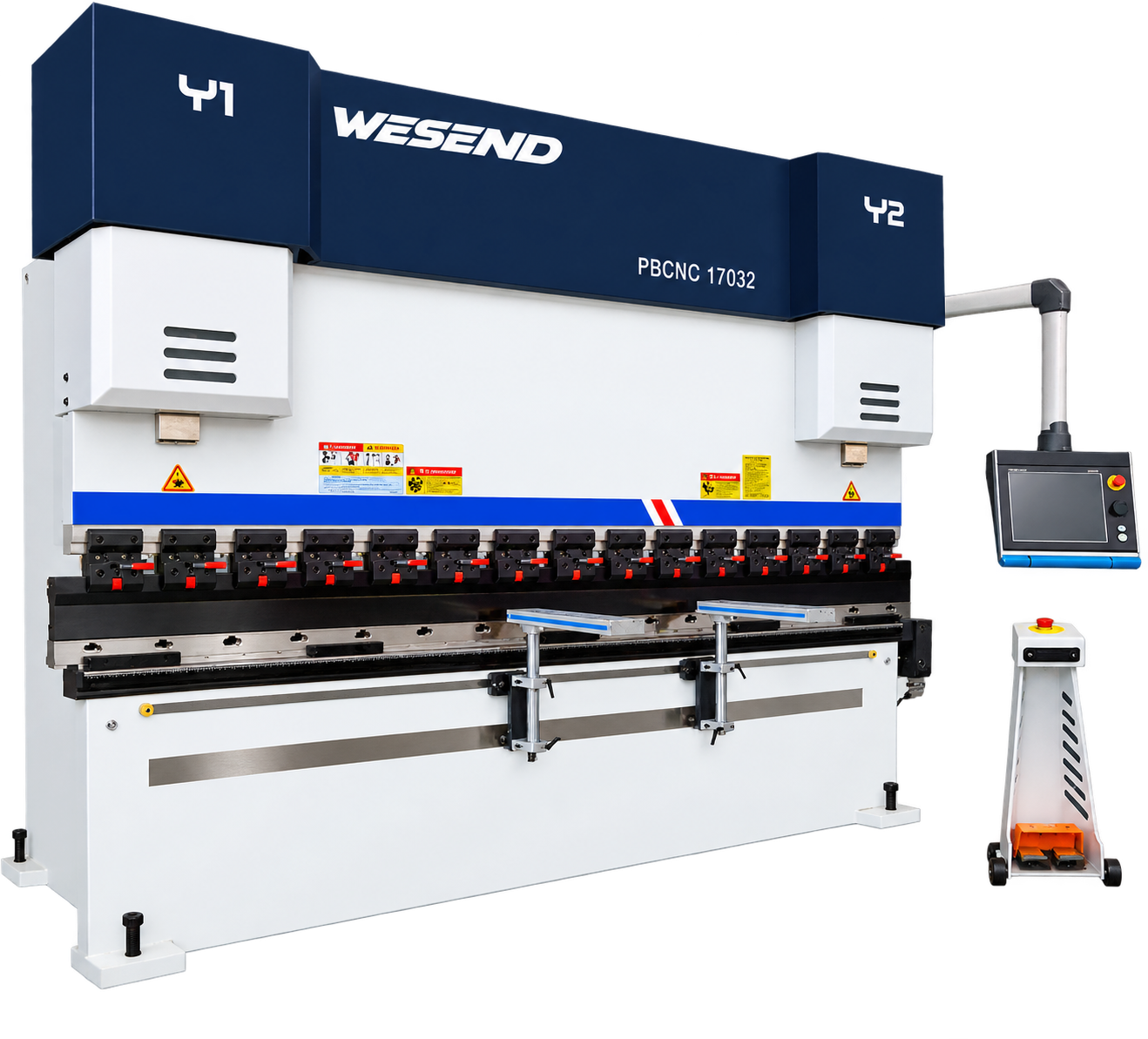

Electro-Hydraulic Servo CNC Press Brake
Electro-hydraulic servo synchronized CNC press brake for precision and repeat bending production. Configuration depends on the workpiece and production requirements.
Machine Overview
The WE67K electro-hydraulic servo CNC press brake uses two hydraulic cylinders, position detection and CNC synchronization to control ram movement. Dedicated control of the cylinder and backgauge axes supports repeatable bending. CNC-controlled worktable compensation adjusts for deflection during bending. Controller, backgauge, tooling and auxiliary equipment are selected to suit the workpiece and production requirements.
Machine Selection
Send your material, dimensions, finished-part requirements and drawing for model selection.
Technical Parameters
Selected catalogue models. Confirm the material, operating conditions and final machine specification before ordering.
| Catalogue model | Nominal force(kN) | Table length(mm) | Distance between uprights(mm) | Ram stroke(mm) | Throat depth(mm) | Opening height(mm) | Main motor power(kW) | Main pump displacement(ml/rev) |
|---|---|---|---|---|---|---|---|---|
| 50/1600 | 500 | 1600 | 1300 | 160 | 300 | 450 | 4 | 10 |
| 50/2500 | 500 | 2500 | 2050 | 160 | 300 | 450 | 4 | 10 |
| 70/1600 | 700 | 1600 | 1300 | 160 | 350 | 460 | 5.5 | 13 |
| 70/2500 | 700 | 2500 | 2050 | 160 | 350 | 460 | 5.5 | 13 |
| 70/3200 | 700 | 3200 | 2600 | 160 | 350 | 460 | 5.5 | 13 |
| 90/1600 | 900 | 1600 | 1300 | 200 | 350 | 460 | 7.5 | 16 |
| 90/2500 | 900 | 2500 | 2050 | 200 | 350 | 460 | 7.5 | 16 |
| 90/3200 | 900 | 3200 | 2600 | 200 | 350 | 460 | 7.5 | 16 |
| 110/2500 | 1100 | 2500 | 2050 | 200 | 400 | 480 | 7.5 | 16 |
| 110/3200 | 1100 | 3200 | 2600 | 200 | 400 | 480 | 7.5 | 16 |
| 110/4100 | 1100 | 4100 | 3600 | 200 | 400 | 480 | 7.5 | 16 |
| 130/2500 | 1300 | 2500 | 2050 | 200 | 450 | 480 | 11 | 25 |
| 130/3200 | 1300 | 3200 | 2600 | 200 | 450 | 480 | 11 | 25 |
| 130/4100 | 1300 | 4100 | 3600 | 200 | 450 | 480 | 11 | 25 |
| 170/2500 | 1700 | 2500 | 2050 | 200 | 450 | 480 | 15 | 32 |
| 170/3200 | 1700 | 3200 | 2600 | 200 | 450 | 480 | 15 | 32 |
| 170/4100 | 1700 | 4100 | 3600 | 200 | 450 | 480 | 15 | 32 |
| 220/2500 | 2200 | 2500 | 2050 | 200 | 450 | 480 | 18.5 | 40 |
| 220/3200 | 2200 | 3200 | 2600 | 200 | 450 | 480 | 18.5 | 40 |
| 220/4100 | 2200 | 4100 | 3600 | 200 | 450 | 480 | 18.5 | 40 |
| 220/6000 | 2200 | 6000 | 5000 | 200 | 450 | 480 | 18.5 | 40 |
| 250/3200 | 2500 | 3200 | 2600 | 250 | 500 | 520 | 18.5 | 40 |
| 250/4100 | 2500 | 4100 | 3600 | 250 | 500 | 520 | 18.5 | 40 |
| 250/6000 | 2500 | 6000 | 5000 | 250 | 500 | 520 | 18.5 | 40 |
| 320/3200 | 3200 | 3200 | 2600 | 250 | 500 | 520 | 22 | 50 |
| 320/4100 | 3200 | 4100 | 3600 | 250 | 500 | 520 | 22 | 50 |
| 320/6000 | 3200 | 6000 | 5000 | 250 | 500 | 520 | 22 | 50 |
| 400/3200 | 4000 | 3200 | 2600 | 320 | 550 | 600 | 30 | 63 |
| 400/4000 | 4000 | 4000 | 3200 | 320 | 550 | 600 | 30 | 63 |
| 400/6000 | 4000 | 6000 | 5000 | 320 | 550 | 600 | 30 | 63 |
| 500/4000 | 5000 | 4000 | 3200 | 320 | 550 | 600 | 30 | 63 |
| 500/6000 | 5000 | 6000 | 5000 | 320 | 550 | 600 | 30 | 63 |
| 600/4000 | 6000 | 4000 | 3200 | 320 | 600 | 600 | 37 | 80 |
| 600/6000 | 6000 | 6000 | 5000 | 320 | 600 | 600 | 37 | 80 |
| 800/6000 | 8000 | 6000 | 5000 | 360 | 650 | 640 | 30×2 | 63X2 |
| 1000/6000 | 10000 | 6000 | 5000 | 400 | 700 | 680 | 37×2 | 80×2 |
| 1200/6000 | 12000 | 6000 | 5000 | 400 | 700 | 680 | 37×2 | 80X2 |
Source: Press Brake Catalogue, printed pages 03–08. Specifications are subject to modification. Material strength, plate dimensions and forming conditions affect capacity.
