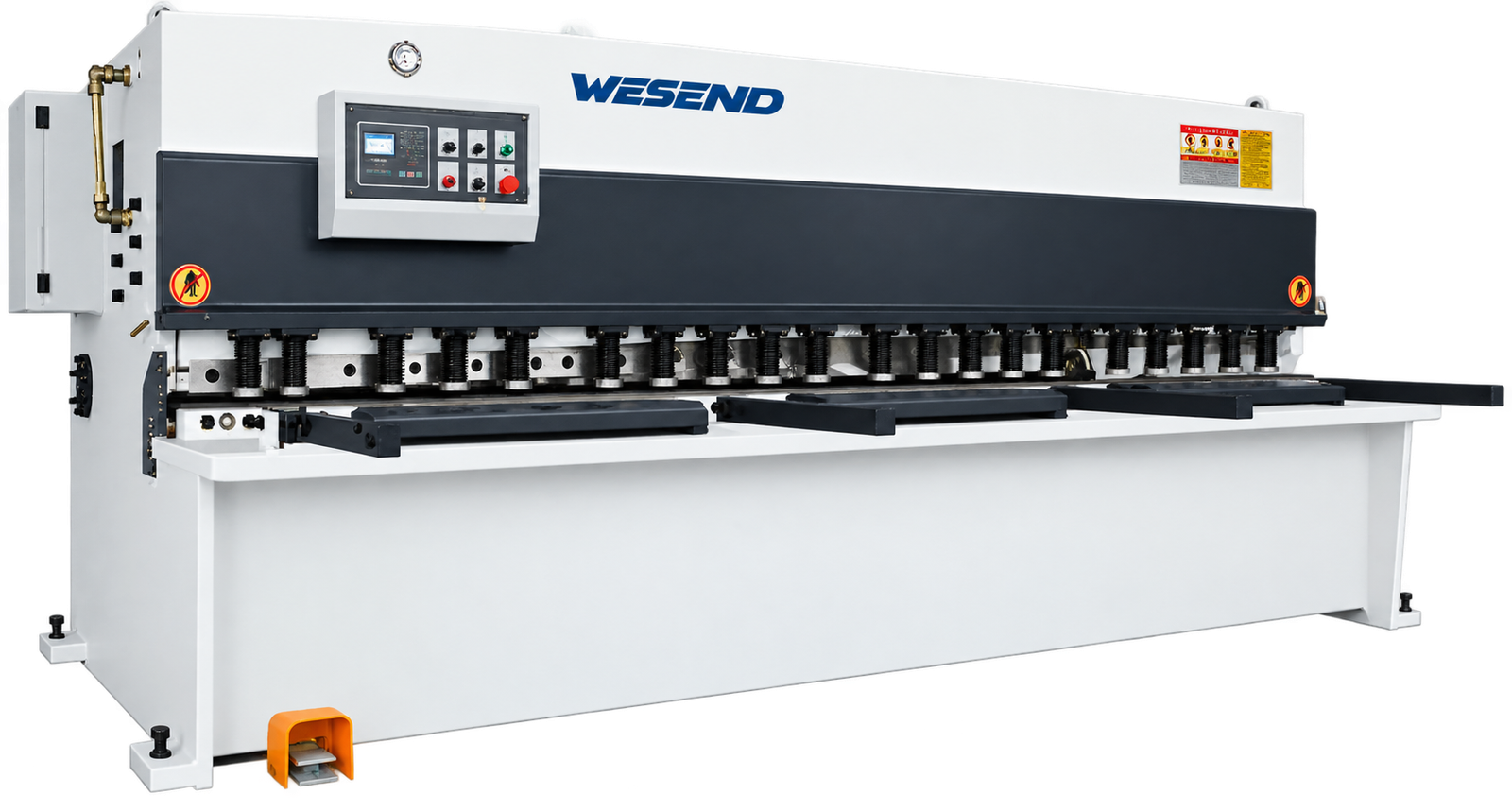

Hydraulic Swing-Beam Shear
Hydraulic swing-beam structure for general sheet-metal and plate cutting production. Control and back-gauge configuration are matched to the cutting process.
Machine Overview
The QC12Y/K hydraulic swing-beam shear provides straight cutting for general sheet-metal fabrication. The catalogue includes economy and CNC versions, with blade-gap adjustment, backgauge arrangements and controller options. Optional feeding and support equipment can be selected according to the sheet size and production workflow.
Machine Selection
Send your material, dimensions, finished-part requirements and drawing for model selection.
Technical Parameters
Selected catalogue models. Confirm the material, operating conditions and final machine specification before ordering.
| Model | Maximum shearing thickness(mm) | Maximum shearing width(mm) |
|---|---|---|
| QC12Y-4×2500 | 4 | 2500 |
| QC12Y-4×3200 | 4 | 3200 |
| QC12Y-4×4000 | 4 | 4000 |
| QC12Y-4×6000 | 4 | 6000 |
| QC12Y-6×2500 | 6 | 2500 |
| QC12Y-6×3200 | 6 | 3200 |
| QC12Y-6×4000 | 6 | 4000 |
| QC12Y-6×6000 | 6 | 6000 |
| QC12Y-8×2500 | 8 | 2500 |
| QC12Y-8×3200 | 8 | 3200 |
| QC12Y-8×4000 | 8 | 4000 |
| QC12Y-8×6000 | 8 | 6000 |
| QC12Y-10×2500 | 10 | 2500 |
| QC12Y-10×3200 | 10 | 3200 |
| QC12Y-10×4000 | 10 | 4000 |
| QC12Y-10×6000 | 10 | 6000 |
| QC12Y-12×2500 | 12 | 2500 |
| QC12Y-12×3200 | 12 | 3200 |
| QC12Y-12×4000 | 12 | 4000 |
| QC12Y-12×6000 | 12 | 6000 |
Source: Press Brake Catalogue, printed pages 23–26. Specifications are subject to modification. Material strength, plate dimensions and forming conditions affect capacity.
Cutting capacity depends on material strength. Confirm the applicable material, controller and final specification with our team.
