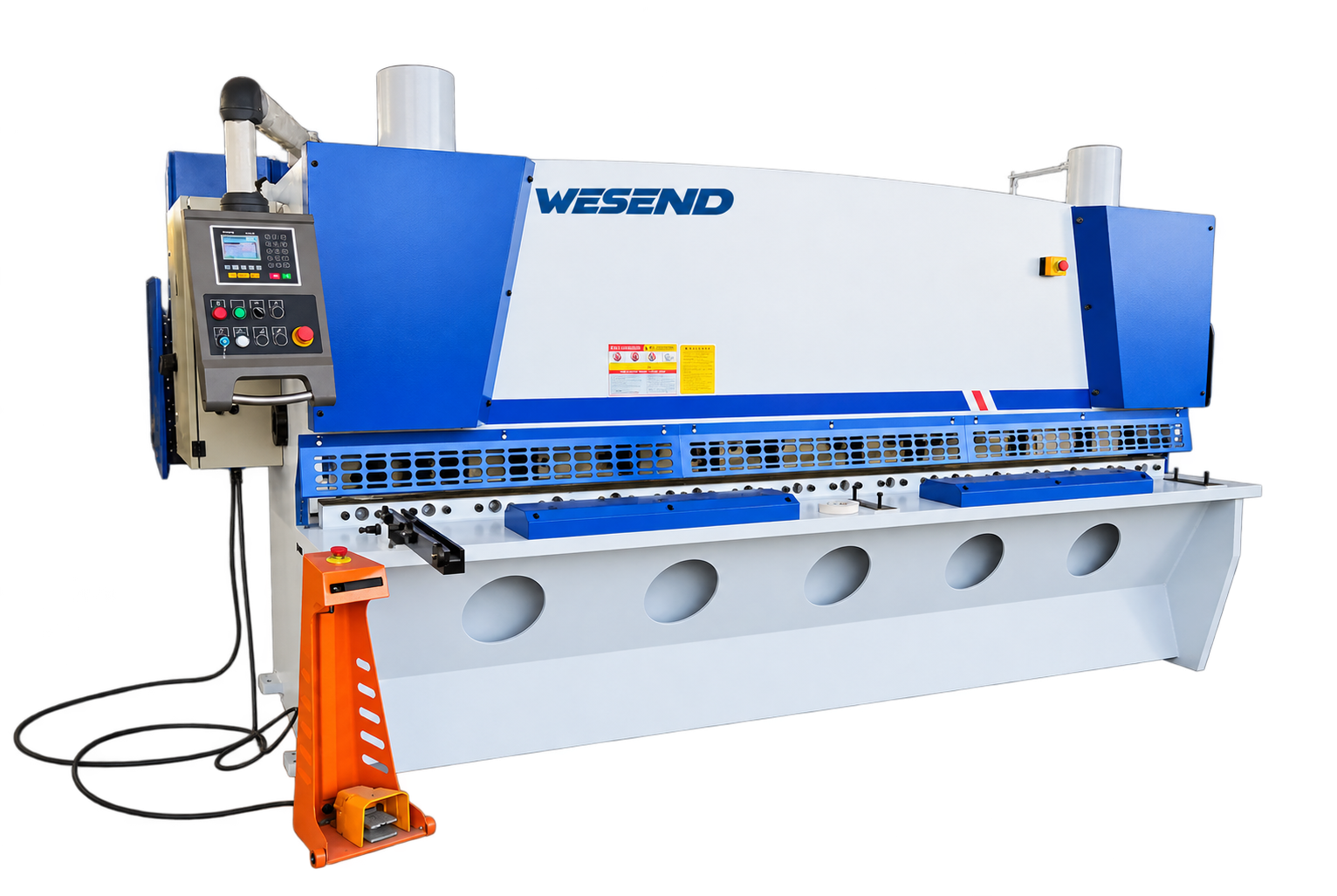

Hydraulic Guillotine Shear
Hydraulic guillotine structure for straight cutting of sheet and plate. Selection depends on material, cutting thickness, working width and workflow.
Machine Overview
The QC11Y/K hydraulic guillotine shear uses an all-steel welded structure and precision sliding guideways. A rectangular cutting blade provides four usable cutting edges. Blade clearance, cutting angle, backgauge and control configurations are selected according to the material and production requirements. NC, CNC and front-feeding configurations are described in the catalogue.
Machine Selection
Send your material, dimensions, finished-part requirements and drawing for model selection.
Technical Parameters
Selected catalogue models. Confirm the material, operating conditions and final machine specification before ordering.
| Model | Maximum shearing thickness(mm) | Maximum shearing width(mm) |
|---|---|---|
| QC11Y-6×2500 | 6 | 2500 |
| QC11Y-6×3200 | 6 | 3200 |
| QC11Y-6×4000 | 6 | 4000 |
| QC11Y-6×6000 | 6 | 6000 |
| QC11Y-8×2500 | 8 | 2500 |
| QC11Y-8×6000 | 8 | 6000 |
| QC11Y-12×2500 | 12 | 2500 |
| QC11Y-12×3200 | 12 | 3200 |
| QC11Y-12×4000 | 12 | 4000 |
| QC11Y-12×6000 | 12 | 6000 |
| QC11Y-16×2500 | 16 | 2500 |
| QC11Y-16×3200 | 16 | 3200 |
| QC11Y-16×4000 | 16 | 4000 |
| QC11Y-16×6000 | 16 | 6000 |
| QC11Y-20×2500 | 20 | 2500 |
| QC11Y-20×3200 | 20 | 3200 |
| QC11Y-20×4000 | 20 | 4000 |
| QC11Y-20×6000 | 20 | 6000 |
| QC11Y-25×2500 | 25 | 2500 |
| QC11Y-25×3200 | 25 | 3200 |
| QC11Y-25×4000 | 25 | 4000 |
| QC11Y-30×2500 | 30 | 2500 |
| QC11Y-30×3200 | 30 | 3200 |
| QC11Y-30×4000 | 30 | 4000 |
| QC11Y-30×6000 | 30 | 6000 |
Source: Press Brake Catalogue, printed pages 19–22. Specifications are subject to modification. Material strength, plate dimensions and forming conditions affect capacity.
Cutting capacity depends on material strength. Confirm the applicable material, blade clearance, angle and final specification with our team.
